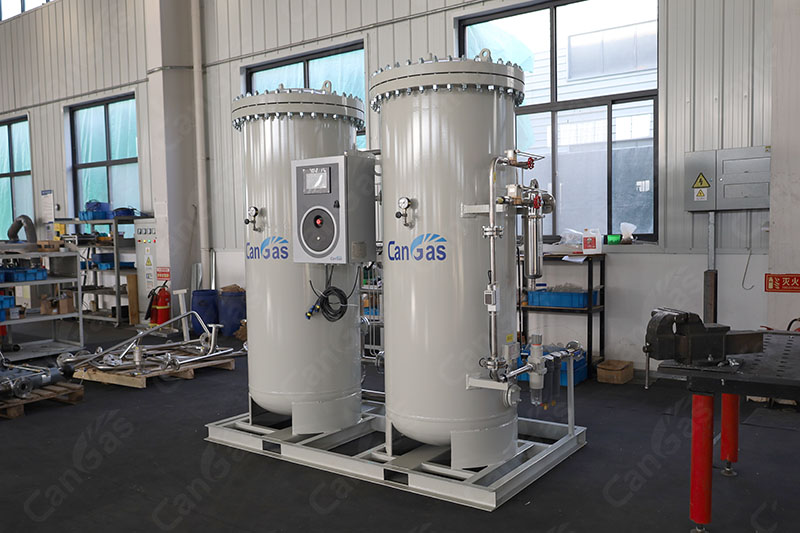

PSA (Pressure Swing Adsorption) on-site nitrogen generators, as a type of ambient-temperature air separation technology, have become one of the mainstream choices in the industrial nitrogen production field due to their unique technical characteristics and flexible application scenarios. Compared to other air separation nitrogen production technologies, its core advantages are as follows:
I. Core Advantages of PSA On-Site Nitrogen Generators
Low Cost and High Energy Efficiency
· Low operating costs: Physical nitrogen production requires only electricity. No chemical reagents or liquid nitrogen purchases are needed, resulting in significantly lower nitrogen production costs compared to purchasing liquid nitrogen in the long run.
· Low energy consumption: The equipment uses static separation, with the core separation process relying on adsorbents (such as carbon molecular sieves) to achieve gas separation through pressure changes, rather than dynamic mechanical moving parts. The largest energy consumption in the system comes from the air compressor. The system's rapid start-up and shutdown capabilities also reduce energy consumption.
Fast Start-up and Flexibility
· Fast gas production speed: Qualified nitrogen gas can be produced within 20 minutes after start-up, quickly meeting gas demand.
· Adjustable purity: Nitrogen purity can be customized within the range of 95%-99.9995%, adapting to the needs of different industries (e.g., food preservation requires 99.9% purity, and the electronics industry requires over 99.99%).
Automation and Intelligence
· Fully automatic control: The system is equipped with a PLC system, which monitors parameters such as purity and flow rate in real time, automatically discharges unqualified gas, and supports unattended operation.
· Remote management: Remote monitoring and data analysis can be achieved via mobile phone or computer, improving operation and maintenance efficiency.
Simple Maintenance and Long Service Life
· Long molecular sieve lifespan: High-quality carbon molecular sieves can last 8-10 years under normal use and maintenance.
· Modular design: The PSA nitrogen generator has a simple structure, mainly composed of adsorption towers, valves, and a control system, with no moving parts to wear out, resulting in low maintenance costs. If a skid-mounted design is used, the equipment is more compact and easier to install, requiring only connection to the air source and power supply.
Environmental Protection and Safety
· No polluting emissions: The entire process uses physical adsorption, with no harmful waste or high-temperature and high-pressure risks, making it environmentally friendly.
· Multiple protection mechanisms: Built-in fault diagnosis and alarm systems prevent production accidents caused by impure gas or equipment malfunctions.
II. Comparative Analysis with Other Nitrogen Generation Technologies
Cryogenic Air Separation Method
· Advantages: Suitable for large-scale production, capable of simultaneously producing high-purity gases such as nitrogen, oxygen, and argon (e.g., 99.9999% nitrogen), suitable for large enterprises in industries such as steel and chemical engineering.
· Disadvantages: Higher initial investment than PSA, longer construction period, longer start-up time, high energy consumption and maintenance costs, and poor flexibility.
Membrane Separation Method
· Advantages: Simple structure, small size, fastest gas production, easy expansion, suitable for small-scale low-purity requirements (≤99.5%).
· Disadvantages: Not suitable for high-purity requirements; costs increase sharply when purity is increased. Currently, it mainly relies on imported membranes, which are expensive and have high replacement costs.
In summary, PSA on-site nitrogen generators have outstanding economic, flexible, and intelligent advantages in the field of air separation nitrogen generation. In the small and medium-scale nitrogen generation field, PSA on-site nitrogen generators currently occupy a dominant position and can meet the needs of industries with high purity requirements and dispersed gas consumption points.
