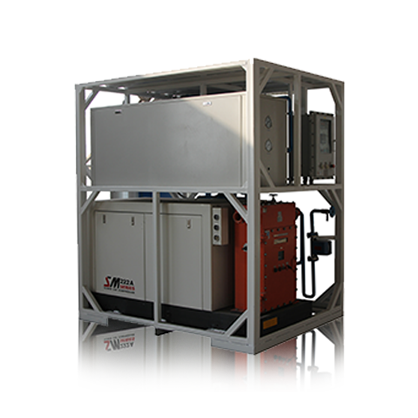

CanGas® Membrane Nitrogen Generator

CanGas® CAME Membrane Nitrogen Generator 95%~99.9%

The CanGas® Membrane nitrogen generator CAME system uses a semi-permeable polymeric membrane to separate and obtain nitrogen from the air. The desired feedstock is compressed air containing 78% N2, 21% O2, 0.9% Argon, and 0.1% other components. The hollow fiber membrane is actually like a gas permeable tube. When the compressed gas passes through the core of the thin tube, some gases such as steam, O2, N2, and CO2 will permeate through the tube wall, but the nitrogen gas permeates slowly - under the stream pressure, the nitrogen gas flows to the tube end and out to the nitrogen buffer or storage tank as purified product nitrogen.

CAN GAS CAME membrane nitrogen generators provide economical, low maintenance and simple method for nitrogen generations especially suitable for low purity from 95% to 99.9% The capacity is flexible by adding or deducting membrane modules that are installed in parallel.


CAME Product Range

  • Nitrogen Flow: 1.0Nm³/h to no top limit

  • Nitrogen Purity: 95% to 99.9%

  • Nitrogen Pressure: 0~24 barg (customizable & adjustable)



Key Features

  • Minimal Maintenance

  • Consistent product quality

  • Compact and Modular design, minimal footprint, easy installation & operation



Models & Specifications

Capacity(Nm³/h)Purity(%)ModelDimensions(mm)Inlet

Outlet

5
95CAME-L-5500*500*1000DN15DN15
98CAME-P-5500*500*1000
DN15DN15
10
95CAME-L-10800*500*2000DN25DN15
98CAME-P-10800*500*2000
DN25DN15
20
95CAME-L-20500*700*2000
DN25DN15
98CAME-P-20900*700*2000DN25DN15
50
95CAME-L-50900*700*2000DN32
DN25
98CAME-P-50900*800*2000DN32DN25
100
95CAME-L-1001100*900*2000
DN50DN40
98CAME-P-1001300*900*2000DN50DN40
500
95CAME-L-5001500*1200*2300
DN100DN50
98CAME-P-5001500*2000*2300
DN150DN50

Please contact us for more flexible and customized models.
