CanGas® VSA Oxygen Generator
CanGas® CAVSA VSA Oxygen Generator 90%
CAVSA series on site O2 generator, lower power consumption, lower operating and maintenance costs, smaller size of skid-mounted modular construction providing lower cost installation and saving floor space. CAVSA O2 generator with more adaptable to the environment, is a reliable and cost-effective solution for small to medium O2 requirements.
Key Features & Benefits
Lower power consumption, electricity consumption is only 0.7~0.9 kW per cubic meter of oxygen
Skid-mounted and modular construction, smaller footprint and easy installation
Maintenance is very simple, only need to change the inlet air filter element periodically, lower operating cost
VSA technology, more adaptable to the environment and sea level of user jobsites, is more reliable

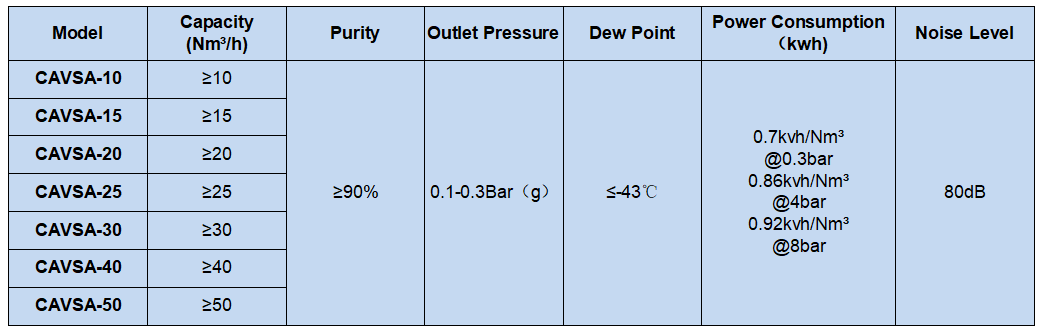

Models & Specifications
| Model | Capacity（Nm3/h） | Purity | Outlet Pressure | Dew Point | Power Consumption(kvh ) | Noise Level |
| CAVSA-10 | ≥10 | ≥90% | 0.1~0.3 Bar(g) | ≤-43℃ | 0.7kvh/Nm3@ 0.3bar， 0.86kvh/Nm3@ 4bar， 0.92kvh/Nm3@ 8bar | 80dB |
| CAVSA-15 | ≥15 | |||||
| CAVSA-20 | ≥20 | |||||
| CAVSA-25 | ≥25 | |||||
| CAVSA-30 | ≥30 | |||||
| CAVSA-40 | ≥40 | |||||
| CAVSA-50 | ≥50 |
Main Application Fields
