CanGas® PSA Oxygen Generator 95±1%
CanGas® CAPO plus PSA Oxygen Generator 95±1%
CanGas® CAPO plus series oxygen generator applies time-proven PSA (pressure swing adsorption) technology to produce high purity 95%±1% oxygen directly from compressed air. Compared with traditional bulk liquid oxygen supply and cylinder oxygen supply, CanGas® CAPO Plus PSA oxygen generator is not only cost-saving, but also capable to produce oxygen on your actual real time oxygen consumption, and it also overcomes the limits of distance, location and transportation. CanGas® firm and reliable CAPO Plus PSA oxygen generators are precision-tuned and ideally suited for a range of commercial and medical applications.
Key Features
Quick startup: qualified oxygen can be produced within 10~20 minutes after startup
Over 20 years manufacturing & engineering experience since 1998
High quality molecular sieve and proprietary PSA energy saving technology could effectively reduce compressed air consumption to lower operation costs
Low maintenance and long lifetime - over 30 years
CANBUS touch screen could easily monitor and control running conditions of the whole package
Wi-Ctrl configuration is available to realize remote control and system upgrades
Skid-mounted design of whole package makes an easy & quick installation at customer jobsite

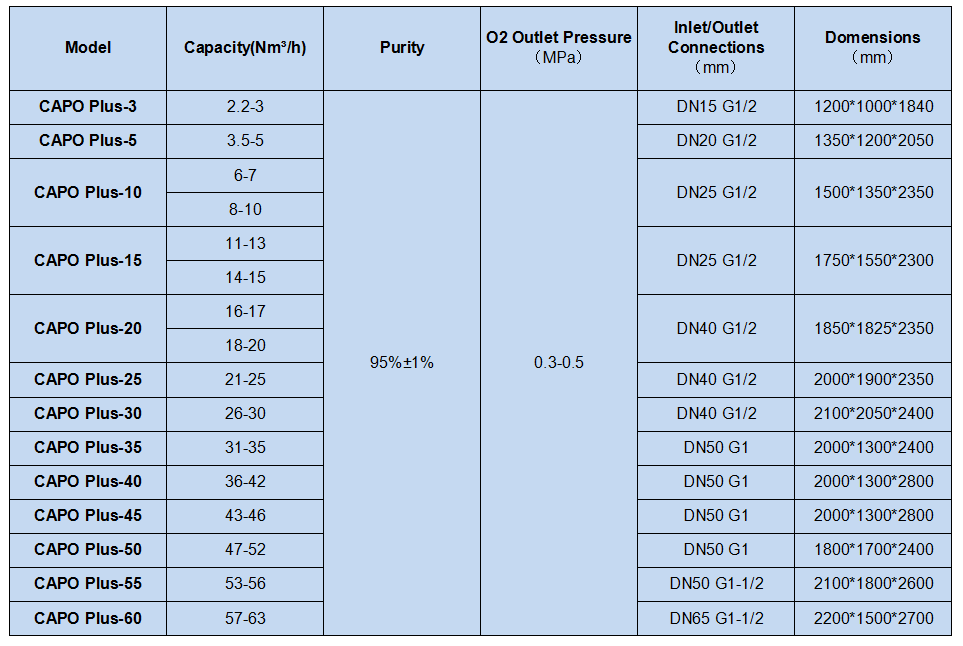

Models & Specifications
Model | Capacity (Nm³/h) | Purity(%) | O2 Outlet Pressure(MPa) | Inlet/Outlet Connections (mm) | Dimensions (mm) |
CAPO Plus-3 | 2.2-3 | 95±1% | 0.3-0.5 | DN15 G1/2 | 1200*1000*1840 |
CAPO Plus-5 | 3.5-5 | DN20 G1/2 | 1350*1200*2050 | ||
CAPO Plus-10 | 6-7 | DN25 G1/2 | 1500*1350*2350 | ||
8-10 | |||||
CAPO Plus-20 | 16-17 | DN40 G1/2 | 1850*1825*2350 | ||
18-20 | |||||
CAPO Plus-30 | 26-30 | DN40 G1/2 | 2100*2050*2400 | ||
CAPO Plus-40 | 36-42 | DN50 G1 | 2000*1300*2800 | ||
CAPO Plus-50 | 47-52 | DN50 G1 | 1800*1700*2400 | ||
CAPO Plus-60 | 57-63 | DN65 G1-1/2 | 2200*1500*2700 |
Main Application Fields
