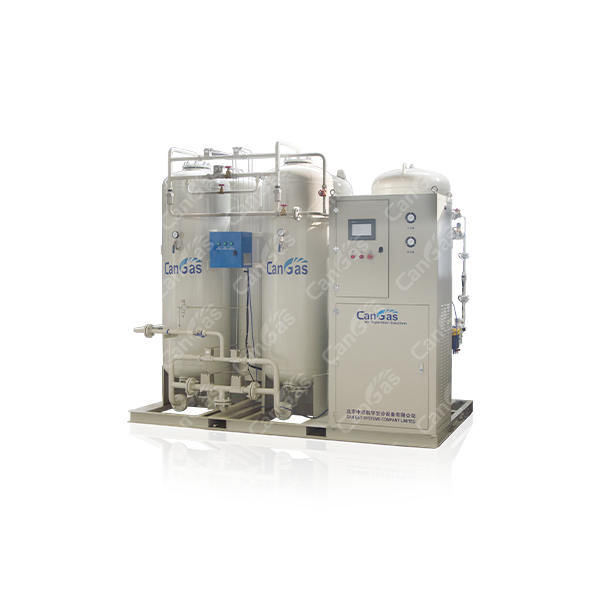

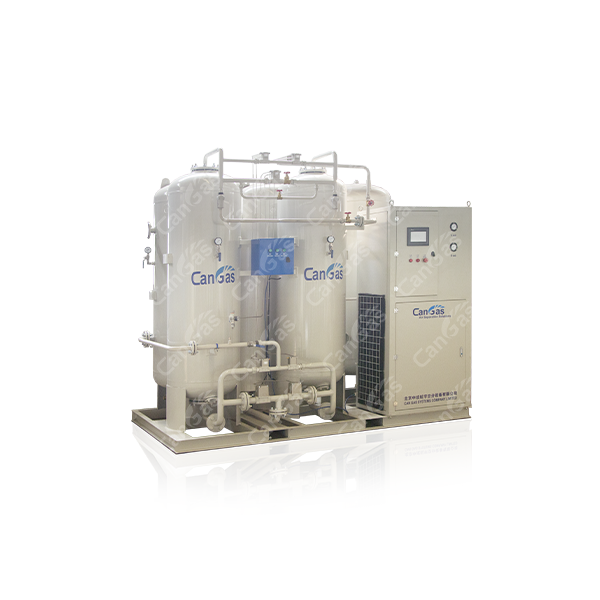

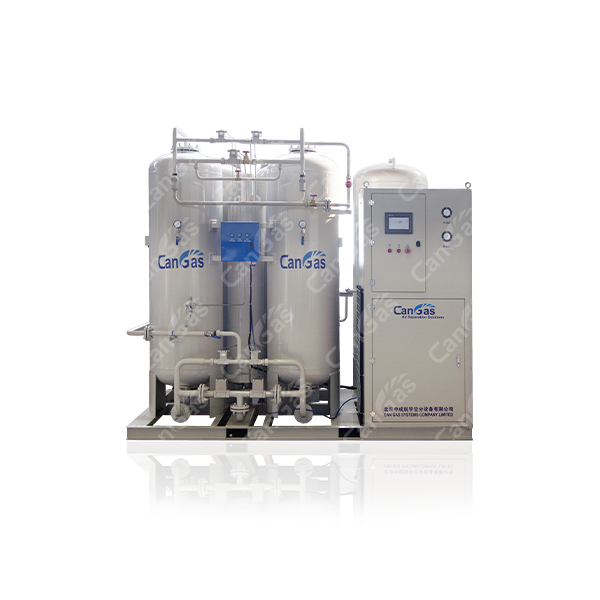

CanGas® High Purity PSA Oxygen Generator 99.5%
CanGas® CAPO-HP high purity oxygen generator 99.5%
CanGas® CAPO-HP 99.5% oxygen generator applies PSA technology to make oxygen with maximum purity up to 99.5%. It meets requirements for the applications such as steel cutting, special medical oxygen services and so on. Nowadays, there are only two companies in the PSA industry of the world could master the skills, CanGas® is one of the Chinese company who makes a breakthrough at the purity of 99.5% by PSA Oxygen Generator. Purity of 99.5% oxygen is monopoly gas supplied by cryogenic plant, but now PSA technology could cover parts of the market with its convenience for easy install and quick oxygen production at user jobsite at low investment.
Specifications
Oxygen purity: 99%~99.5%
Oxygen flow: 3~40Nm³/h
Oxygen pressure: 4~5barg or customized
Key Features
All-in-one design, all systems are integrated on one skid or two skids for easy installation and operation
High efficient and stable
Full automatic control
Low maintenance
Time-proven technology design
Durable
Dependable controlling system and processing valves ensure reliable performance

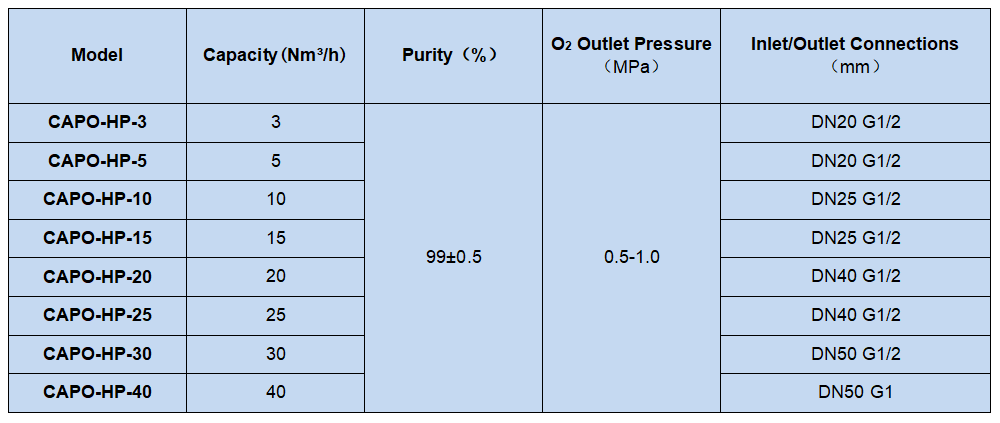

Models & Specifications
Model | Capacity （Nm³/h） | Purity （%） | O2 Outlet Pressure（MPa） | Inlet/Outlet Connections（mm） |
| CAPO-HP-3 | 3 | 99±0.5 | 0.5-1.0 | DN20 G1/2 |
| CAPO-HP-5 | 5 | DN20 G1/2 | ||
| CAPO-HP-10 | 10 | DN25 G1/2 | ||
| CAPO-HP-15 | 15 | DN25 G1/2 | ||
| CAPO-HP-20 | 20 | DN40 G1/2 | ||
| CAPO-HP-25 | 25 | DN40 G1/2 | ||
| CAPO-HP-30 | 30 | DN50 G1/2 | ||
| CAPO-HP-40 | 40 | DN50 G1 |
Main Application Fields
