CanGas® Portable Small Scale Box-type PSA Oxygen Generator

CanGas® SMART CAPO Portable Small Scale Box-type PSA Oxygen Generator (93%)

SMART series PSA oxygen generators are developed for small health care institutions, especially for low flow, continuous medical oxygen demand. A stand alone system with highly compact , plug and run design and wide applicabilities. SMART series PSA oxygen generators are excellent in performance, reliability and convenience.

Key Features

  • Compact: Built-in high quality oil-injected screw compressor, dryer and Multi-stage filters

  • Reliable and stable: 7*24hrs design, no performance degradation

  • Low Noise: Sturdy and noise reduction industrial cabinet

  • Convenient and easy installation: Plug in and run design. Heavy duty casters, allowing easy and time saving installation

  • High Efficiency: Low power consumption

  • Reliable: Time-proven PSA technology

  • Wide applicabilities: Many model and function options

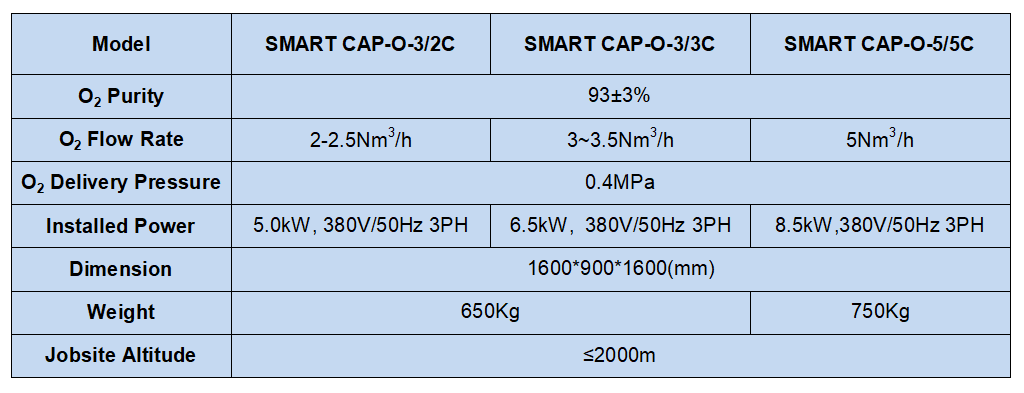

Models & Specifications

Model

SMART CAP-O-3/2C

SMART CAP-O-3/3C

SMART CAP-O-5/5C

O2 Purity

93%±3%

O2 Capacity

2-2.5Nm3/h

3-3.5Nm3/h

5Nm3/h

O2 Delivery Pressure

0.4MPa

Installed Power

5.0kW, 380V/50Hz 3PH

6.5kW, 380V/50Hz 3PH

8.5kW,380V/50Hz 3PH

Dimensions

1600*900*1600(mm)

Weight

650Kg

750Kg

Jobsite Altitude

≤2000m














Main Application Fields
