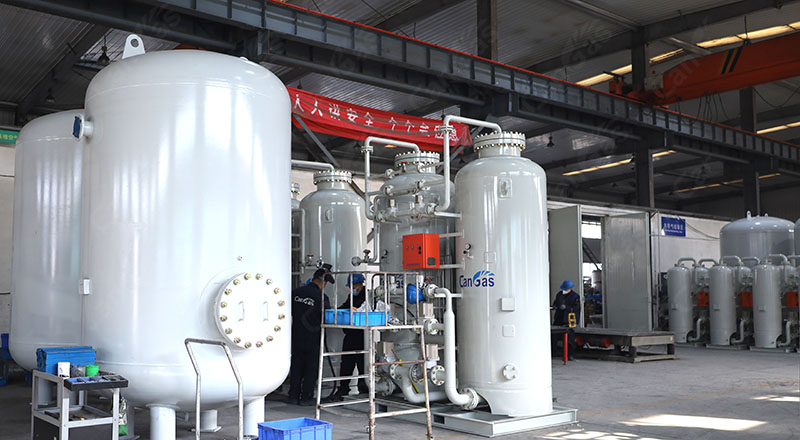

Abnormal switching of adsorption towers in PSA oxygen generation systems is not a frequent issue in the industry, but it may still occur. Such anomalies can lead to reduced product gas flow and purity, higher risk of equipment damage, and increased power consumption. For PSA air separation units, abnormal switching of adsorption towers can be categorized as either a moderate or major fault according to actual operating conditions.
Common causes of abnormal switching in PSA oxygen generation adsorption towers are as follows:
Solenoid Valve or Pneumatic Valve Failure
Fault Manifestation
Solenoid valves are key components that control adsorption tower switching. If a solenoid valve malfunctions, particularly failing to close properly, switching failure will occur, and the adsorption towers cannot alternate operation normally.
Impact Level: Moderate to Severe
A single faulty valve may only affect the switching of the corresponding tower. However, failure of an equalization valve may trigger an immediate system shutdown.
Solution
Inspect the solenoid valve to verify normal power supply, intact coil, and unjammed valve spool. Replace the solenoid valve with a new one if it is damaged.
PLC Control System Failure
Fault Manifestation
The control system of a PSA oxygen generator governs the switching sequence of adsorption towers and other process parameters. Disordered timing sequences or faulty switching logic in the control system will cause abnormal adsorption tower switching.
Impact Level: Severe
Immediate system shutdown and maintenance are mandatory; otherwise, uncontrolled pressure fluctuations will occur inside the adsorption towers.
Solution
Inspect the control system power supply, signal cables and controller components to ensure normal operation. For software-related faults, perform debugging and program adjustment. For hardware failures, replace the defective components accordingly.
Sensor and Instrument Abnormality
Fault Manifestation
Pressure or flow sensors transmit distorted signals, causing misjudgment by the control system.
Impact Level: Moderate
Timely handling is required; otherwise, false alarms or switching errors will be triggered.
Solution
Calibrate or replace faulty sensors and instruments in a timely manner.
In the field of PSA air separation, the alternate operation of adsorption towers constitutes the core of the air separation process. It is critical to closely monitor the operating status of adsorption towers, detect abnormalities early and handle them promptly, so as to ensure stable and reliable operation of the oxygen generation system.
