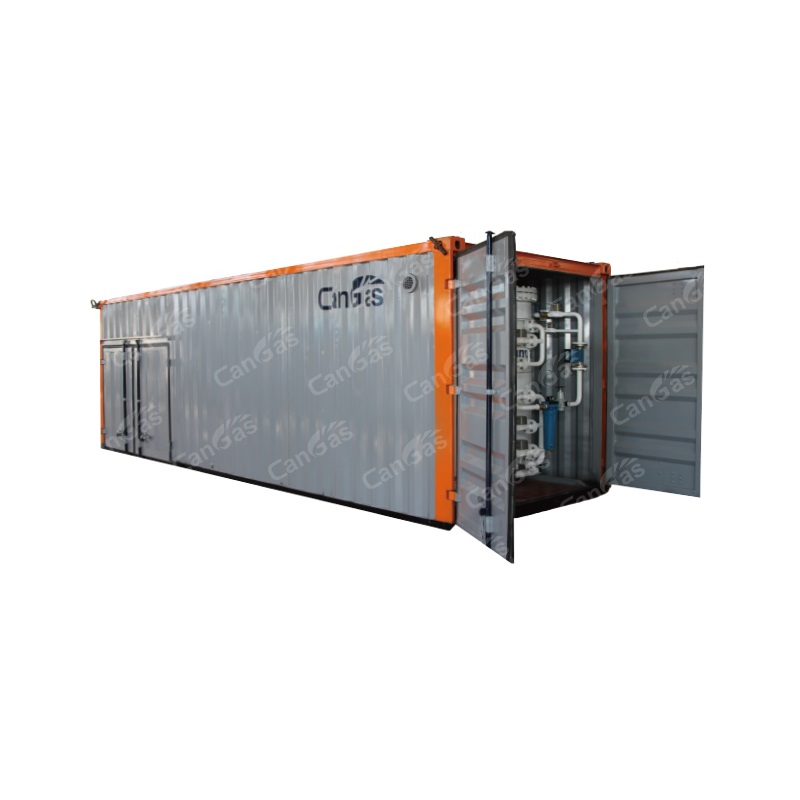

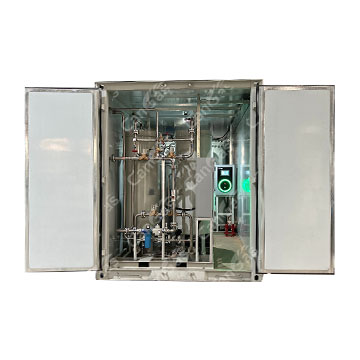

CanGas® Containerized High Purity Nitrogen Generation System

CanGas® C series Containerized High Purity Nitrogen Generation System 95%~99.9999%

CanGas® C series high purity Nitrogen generation system is an ideal solution with combination of PSA Nitrogen generation and Nitrogen hydrogenation purification technologies, developed for high purity and large flow Nitrogen applications such as green ammonia synthesis, with highly compact and modular design, 2 types of Nitrogen purifier available. The CanGas® C series High purity Nitrogen generation system is excellent in cost efficiencies, performance, convenience and stability.

System Features

  • Time-proven on site PSA Nitrogen Separation technology.

  • Outstanding availability with premium components to ensure longer stable operational time.

  • Reliable hydrogenation control technology, lower H2 consumption.

  • Modular design: heavy-duty skid and containerized type, all system can be built into containers ready to deploy and run; quick expansion.

  • Smart Control: standard CANBUS touch screen smart automatic & remote control system, 7*24 unattended.

  • Installed outdoor. No machine room is required. Saves costs and time on Engineering dramatically.

  • AUPV automatic unqualified product vent and EES energy efficiency saving function.

  • Multiple manufacture standards available: GB, EAC, AS, ASME, CRN, CE/PED.


Product specifications

  • Nitrogen product purity: up to 99.9999% (Non-oxygen content)

  • Nitrogen capacity: 50 ~ 2000 Nm3/h

  • Nitrogen pressure: ≥0.5MpaG

  • Nitrogen dew point: ≤-65 ℃ @ATM

  • O2+H2O content: ＜10ppm
