CanGas® Nitrogen Tire Inflator

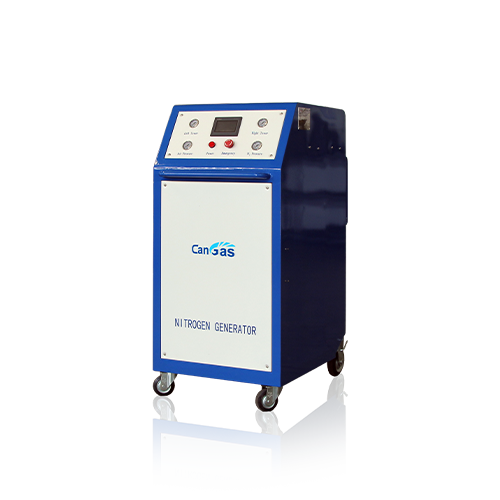

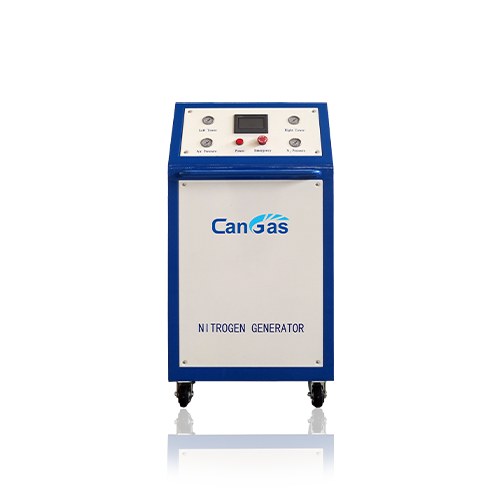

CanGas® CAC Nitrogen Tire Inflator 95%~99.9%

CanGas® CAC series Nitrogen Tire Inflators are dedicated to develop purer and more reliable nitrogen generating devices. This device could offer special effective protection for tires of both family cars and commercial vehicles.

 Improve the stability of tires under transport condition

Nitrogen is inert and can effectively keep the tire pressure, thereby improving the stability indeed for tires under transport condition.

 Avoid tire burst

During driving, the temperature of tires will gradually go up when rounding; tire burst accident happens if the tire temperature reaches a certain level, but filling Nitrogen into tires will reduce the rate of heat collecting and hence avoid tire burst.

 Reduce fuel consumption

When vehicles are running under the condition of lacking tire pressure, driving resistance of the tires and the fuel consumption will be increased, while, after filled with Nitrogen, tires can keep a stable pressure and the fuel consumption is also reduced. Tests reveal: comparing with air tires the oil-saving rate of Nitrogen tires is from 2% to 10%.

 Prolong the service life of tires

Filling Nitrogen into tires can reduce the irregular friction between tires and road surfaces, as well as reduce oxidation, thereby strengthening the elasticity of tires and prolonging the service life of tires.

 Greener environmental protection

The audio conductivity of nitrogen is low, about 1/5 of the air, which could reduce the tire noise, even noise pollution. Besides, after filling nitrogen into tires the fuel consumption could be reduced during vehicles running, thereby the emissions of pollution is reduced.


Key Features

  • High purity of product nitrogen with stable performance

  • Imported Key parts with good quality and reliable performance

  • Heavy duty caster, portable and stable, low maintenance

  • Sturdy industrial cabinet

  • 21 years time-proven PSA technology

Models & Specifications

Model

CAC-1CAC-3
Application

Nitrogen Tire infator will help the users to keep a proper tire pressure, which will maximize the tires' service life and fuel efficiency, and the higher the Nitrogen puity is, the more stable the tires pressure will be, and the longer tires' service life will be.

Purity95-99%
Flow Rate40-60L/Min (2 scfm)85-114L/Min (4 scfm)

Working Pressure

90~145psig
Tire charging quantity2-4 tires at the same time4-6 tires at the same time
Standard accessoriesBuiltin 1 piece (0.42 cubic foot) Nitrogen buffer tankBuiltin 1 piece of 15L(0.53 cubic feet)Nitrogen buffer tank
Extemal (or built-in) two stages of high efficiency air filter with pressure regulator
1 piece of 10 meters (32.8 feet) nitrogen rubber hose with chuck
2 piece of 10 meters (32.8 feet) nitrogen rubber hose with chuck
PowerAC220V,50HZ,1 Phase
Dimension

620*470*1100(mm)/43"

H*18"W*25"D

620*600*1340(mm)/53"

H*24"W*25"D

Weight60kg(132lbs)90kg(198lbs)
Optional accessories

• Optional 1 piece of 10 meters (32.8 feet) nitrogen rubber hose with chuck

• Optional 1 piece of digital handset oxygen analyzer

• One spare Nitrogen Outlet

• Optional 4 piece of 10 meters (32.8 feet) nitrogen rubber hose with chuck

• Optional 1 piece of digital handset oxygen analyzer

• Two spare Nitrogen Outlets




Main Application Fields
