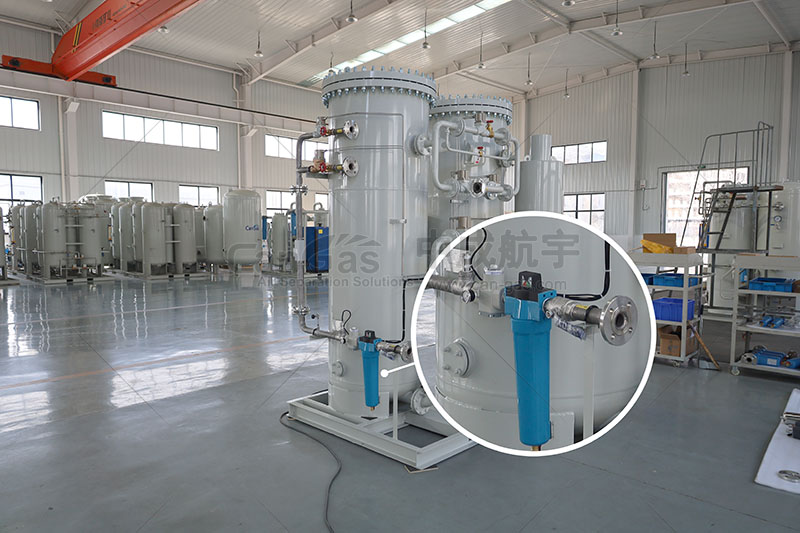

Filters in a PSA nitrogen generation system are critical components, playing a vital role in ensuring clean compressed air, extending the lifespan of molecular sieves, improving nitrogen quality, and preventing system failures. Therefore, when selecting and using filters, it is essential to thoroughly evaluate their performance and quality to guarantee the stable operation and long-term efficiency of the nitrogen generation system.

Judging Filter Performance

Filter efficiency cannot be determined by visual inspection alone and requires professional testing methods, such as particle counters or oil content analyzers. The general process is as follows:

        1. Select Appropriate Testing Equipment

        Choose a particle counter or oil content analyzer based on the parameters to be monitored (e.g., particle size, oil concentration) and the application scenario.

        2. Prepare Samples

        Collect air samples from both the inlet (upstream) and outlet (downstream) of the filter in the PSA system. Ensure samples are representative and avoid introducing contamination during collection.

        3. Perform Measurements

        Use the selected equipment to analyze the samples. Follow the device instructions to set appropriate parameters:

                o For particle counters: Configure measurement range, sensitivity, etc.

                o For oil content analyzers: Calibrate and set detection standards.

        4. Analyze Results

        Compare upstream and downstream measurements. A well-performing filter will show:

                o Reduced particle counts (in size and quantity).

                o Oil content within acceptable limits downstream.

Maintenance and Replacement Guidelines

To ensure long-term system stability, regular monitoring and maintenance of filters are crucial. Establish a maintenance schedule and replace clogged or expired filter elements promptly.

If performance testing is unavailable, consider the following:

        1. Usage Records

        Replace filters approximately every 8,000 hours under normal operating conditions.

        2. Clogging Indicators

        Most PSA system filters include clogging indicators. Monitor these alerts to identify efficiency drops and schedule replacements.

By combining professional testing with proactive maintenance, PSA nitrogen systems can operate efficiently and deliver consistent, high-purity nitrogen output.
