The working principle of VPSA oxygen generator
Return

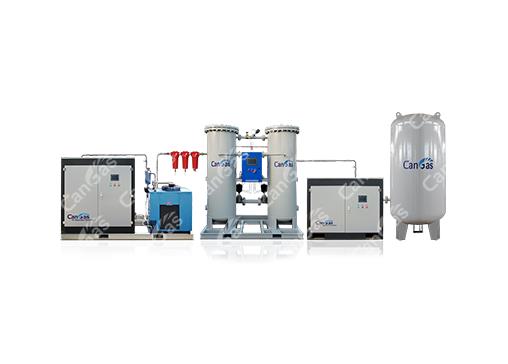

The working principle of vacuum pressure swing adsorption (VPSA) oxygen generator is to use lithium molecular sieve to selectively adsorb nitrogen in the air, so that oxygen is accumulated at the top of the adsorption towers as product gas output. The whole process includes at least two steps of adsorption (low pressure) and desorption (vacuum or negative pressure), and the operation is repeated cyclically. In order to continuously obtain oxygen products, the adsorption system of the VPSA oxygen generator will consist of two adsorption towers equipped with molecular sieves (assuming towers A and B) and pipeline-valve assemblies. The compressed air enters tower A after being filtered, and oxygen is collected through adsorption. To the top of the adsorption tower as product gas output, at the same time, the B tower is in the regeneration stage, when the A tower that is in the adsorption tends to be saturated, under the control of the controller, the air source turns to the B tower for adsorption Oxygen production, two towers cooperate to circulate, realize continuous production of oxygen.

The adsorption system consists of two adsorption towers equipped with zeolite molecular sieve adsorbent and pipeline-valve assemblies. The compressed air at normal temperature and low pressure enters from the bottom of the A tower. When flowing through the adsorbent layer, nitrogen, carbon dioxide, water vapor, etc. in the air are adsorbed. Oxygen is collected to the top of the adsorption tower through the adsorption bed as a product gas output. At the same time, the B tower is in the regeneration condition. When the adsorption tower for adsorption is about to reach adsorption saturation, under the adjustment of the control system, the normal temperature and low pressure air is transferred to the B tower to start adsorption and oxygen production. Towers A and B alternately take turns to achieve the purpose of continuous oxygen production.

At present, the adsorption pressure of VPSA oxygen generator is about 0.05Mpa, which is only less than 1/10 of that of psa oxygen generator, and the gas output of a single machine can reach 7500~9000Nm³/h, which is dozens of times that of psa oxygen generator. The most important thing is that VPSA has lower energy consumption (power consumption per cubic meter of oxygen production ≤ 0.5 kW), and is more environmentally friendly and green.
