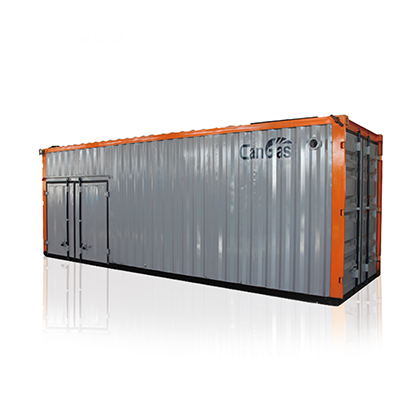

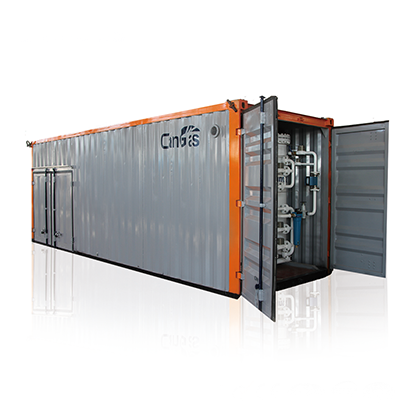

CanGas® Containerized Nitrogen Generator System

CanGas® Containerized Nitrogen Generator System 95%~99.9999%

CanGas® Containerized Nitrogen Generator System is mainly for portable & moving purpose, specially used in oil field, airport, refining, chemical processing and other applications, where nitrogen source is far away from consumers side. CAN GAS has years of such field experience for customers from different industries.

CanGas® Containerized Nitrogen Generator System includes PSA and membrane type nitrogen generators, which are with flow capacities ranging from 1.0Nm3/h to 9,000+ Nm3/h to big tonnage nitrogen plant.



Key Features

  • Easy transportation, installation

  • Designed for extreme ambient conditions with extreme cold or hot temperature

  • Automatic operation, DCS communication available

  • Both electrical and diesel power are available

  • Customize the system to meet the customer’s special requirements


PSA nitrogen generator VS Membrane nitrogen generator in Containerized /Box-type

ModelN2 PurityFlow CapacityDischarge pressuresHigh pressure system is availableTouch screen controller with following capabilitiesEasy ,low maintenance cost

PSA N2 Generator95% - 99.9999%1.0NM3/h to 1,000NM3/h0-7bar(g)

• Oxygen analyzer

• Air pressure

• Nitrogen pressure

• Low nitrogen purity alarm

• Low nitrogen pressure alarm

• Optional:remote monitor system

•Optional:full automatic control

Membrane N2 Generator95% - 99.9%0.25NM3/h to no top limit0-30bar(g)


Main Application Fields
