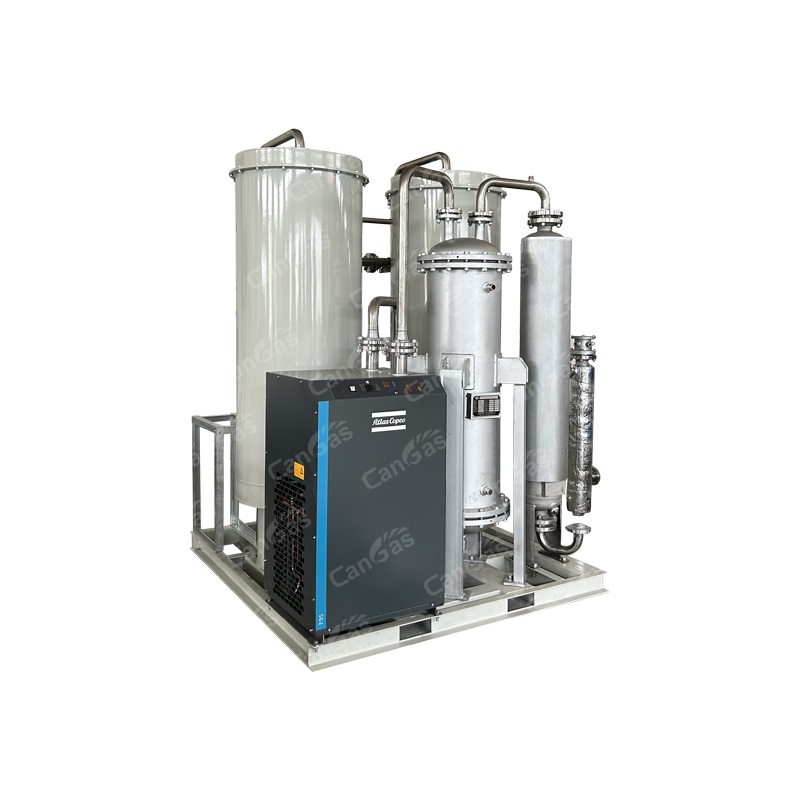

CanGas® CAY Nitrogen Purifier

CanGas® CAY Nitrogen Purifier 99.9995%~99.9999%

Low purity nitrogen contains normally 0.1~1% oxygen. To increase the nitrogen purity to 99.9995% or higher for specified applications, the oxygen has to be removed. With CanGas® CAY nitrogen purifier, high purity of nitrogen gas is produced by adopting deoxidization device with feeding of proportional hydrogen. The CAY nitrogen purifier can be added to existing nitrogen systems at user sites. It is onsite nitrogen supply solution with high purity at a minimum cost.

Product Nitrogen Quality

Oxygen Content: ≤ 1ppm
Dew Point: ≤ -70°C, customizable
Hydrogen Residual: ≤ 2000ppm


Key Features

  • Fully automatic controlling, monitoring and running

  • High efficiency with low costs

  • Closed-loop temperature controls

  • Simple and easy operation

  • Stable and reliable performance


Standard Models & Specifications (other capacities than listed are available)

Capacity(Nm3/h)

Model

Hydrogen Consumption（H2/N2%）

Heating Power（KW）

Cooling Water Consumption（T/h）

Inlet

Outlet

5

CAY-5

2

3

0.2

DN15

DN15

10

CAY-10

2

4

0.4

DN15

DN15

20

CAY-20

2

6

0.5

DN20

DN20

50

CAY-50

2

12

1.1

DN25

DN25

100

CAY-100

2

16

1.5

DN40

DN40

200

CAY-200

2

22

2.5

DN40

DN40

500

CAY-500

2

40

4

DN50

DN50

1000

CAY-1000

2

49

6

DN80

DN80

1500

CAY-1500

2

58

8.2

DN100

DN100

2000

CAY-2000

2

65

11

DN150

DN150

Note: N2 delivery pressure is 0~5 BarG (72.5 PSIG) adjustable. Higher pressure is customizable.
